The work of slotting and cutting itself is difficult, and without suitable and useful tools, it can be truly frustrating. A handheld single piece concrete saw will be your effective assistant at work! The high-quality pure copper motors can work stably for a long time, greatly improving your efficiency. The wide cutting angle, flexible handrails, and lightweight body all provide you with a good user experience. Take our concrete saw home and start a brand new work experience!

Specification

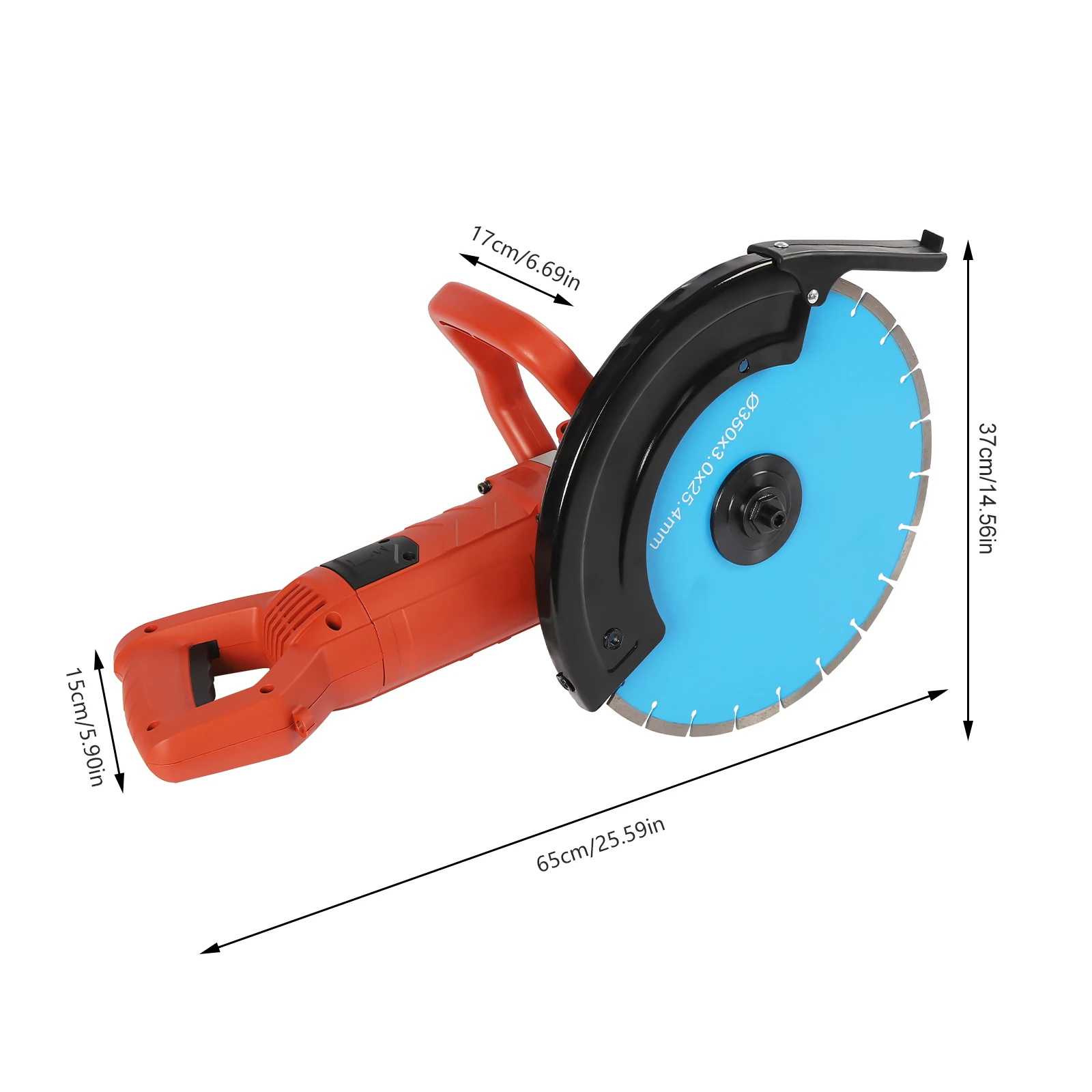

Material: ABS, Copper, Aluminum Alloy, IronColor: Orange, Black, BlueStyle: ModernPower Source: Corded ElectricMotor Type: Pure-copper MotorDust Removal Method: Water WetSurface Treatment: Electroplating, Sandblasting Speed: 3800r/min Power: 3000WMax. Load Power: 5800WSaw?Blade?Rotation?Direction:?Turn?BackVoltage: 110V/220V Noise: About 70DBCutting Depth: ≤13.5cm/5.3in Main Handle Rotation Angle: 180 °Power Cord Length: 2.9m/9.5ftMain Handle Width: 14cm/5.5in Sub-Handle Width: 15cm/5.9in Saw Blade Diameter: 35cm/13.77in Saw Blade Bore Diameter: 2.54cm/1in Saw Blade Thickness(Cutting Width): 3mm/0.12in Gross Weight: 12.25kg/27lbsNet Weight: 11.05kg/24.36lbsProduct Size: 65*37cm/25.6*14.56inPackage Size: 57*37.5*20.5cm/22.44*14.76*8.07in

Key Features

Highly Efficient: The pure-copper motor provides high power of 3000W and a speed of up to 3800r/min. The cutting blade with high diamond content is sharper and can quickly and easily penetrate tiles, concrete, and wood, greatly improving your work efficiency. Stable Performance: The pure-copper motor can run for a long time with a noise level of only about 70 decibels, providing you with a better user experience. In addition, the large-sized heat dissipation holes provide good ventilation and heat dissipation, protecting internal components from burning out.

High Safety: The waterproof design allows you to use water for dust removal during work at ease, with overload protection, wall blocking self-stop, and soft start, protecting the motor from injury and preventing accidents.Dust-free Cutting: This set is equipped with a suction pump and a roll of water pipe, which can achieve dust-free cutting by supplying water to the saw blade, greatly reducing the damage caused by dust and extending the service life!

Adjustable Depth: By adjusting the position of the depth plate, you can freely choose the cutting depth, with a maximum depth of 5.3-inch, to meet your different needs. Durable and Sturdy: The high-quality aluminum alloy dust cover, iron plate, and ABS shell, combined with electroplating and sandblasting, make it sturdy, wear-resistant, impact-resistant, rust-proof, providing stable power transmission and a longer service life.

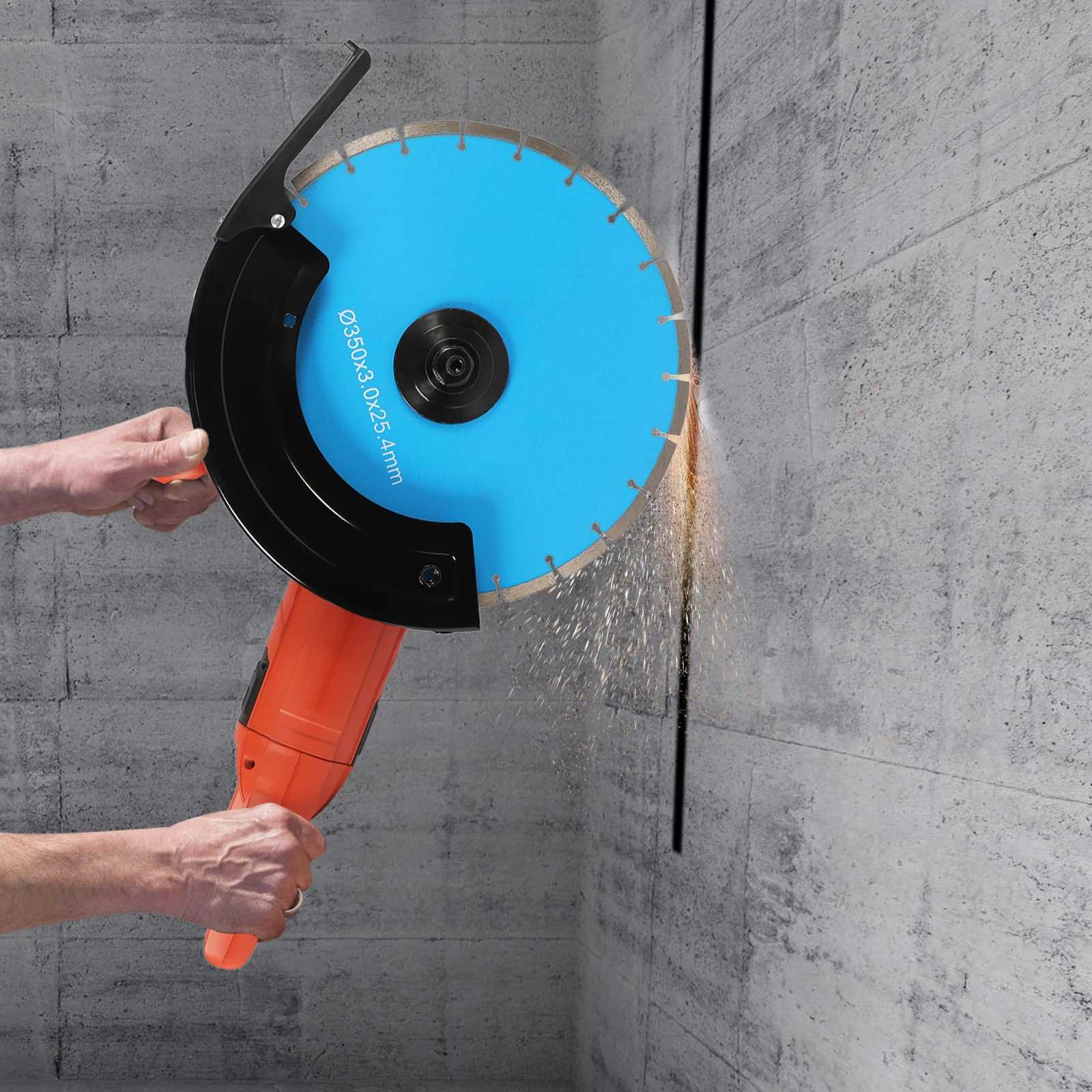

Rotating Handles: Simply press the rotary knob on the handle to rotate the main handle 180 degrees so it can adapt to different working environments for vertical and horizontal cutting.User-friendly Design: The curved handle conforms to ergonomics providing good convenience and accuracy for your operation. The external carbon brush design achieve easy disassembly and assembly, which is time-saving and user-friendly.

Application

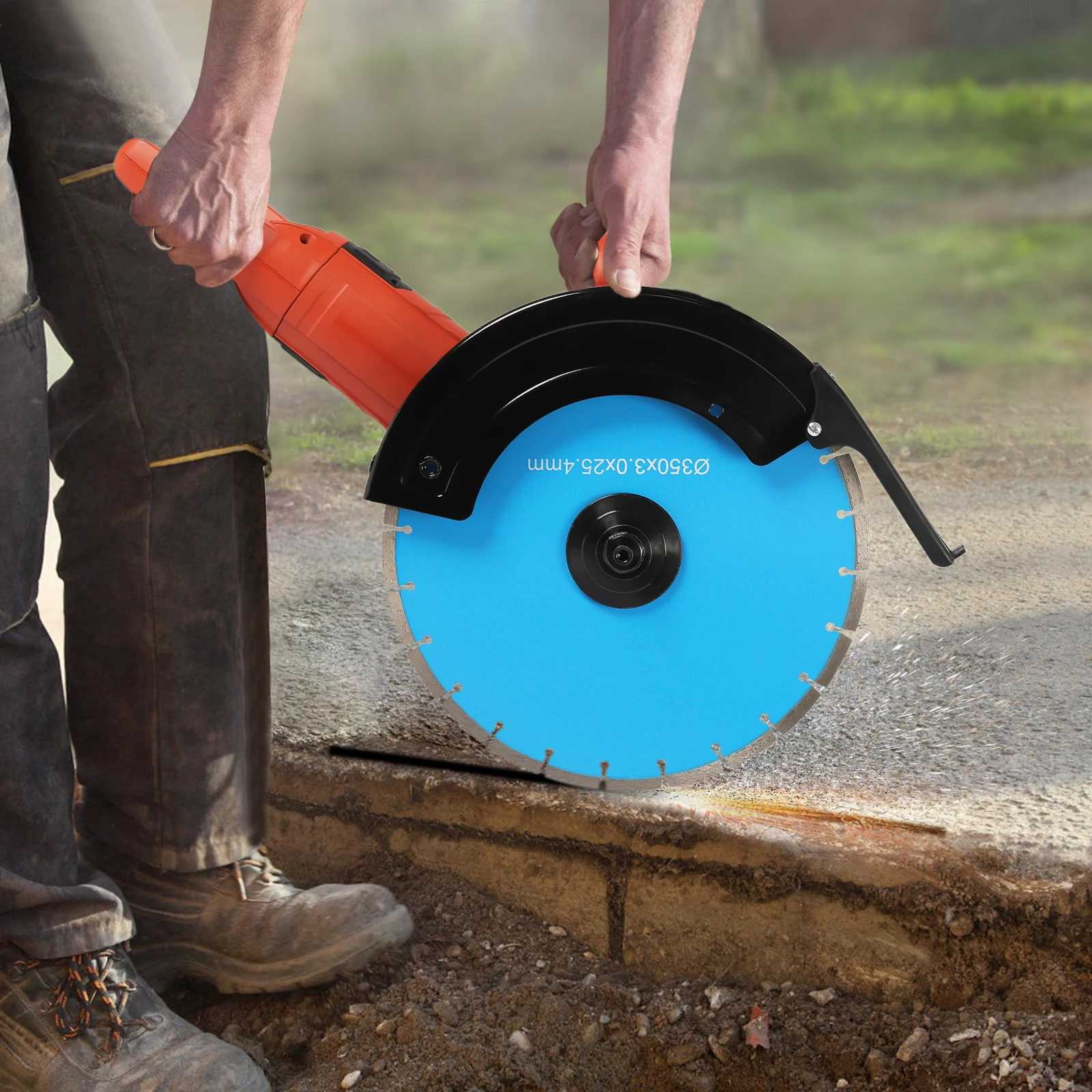

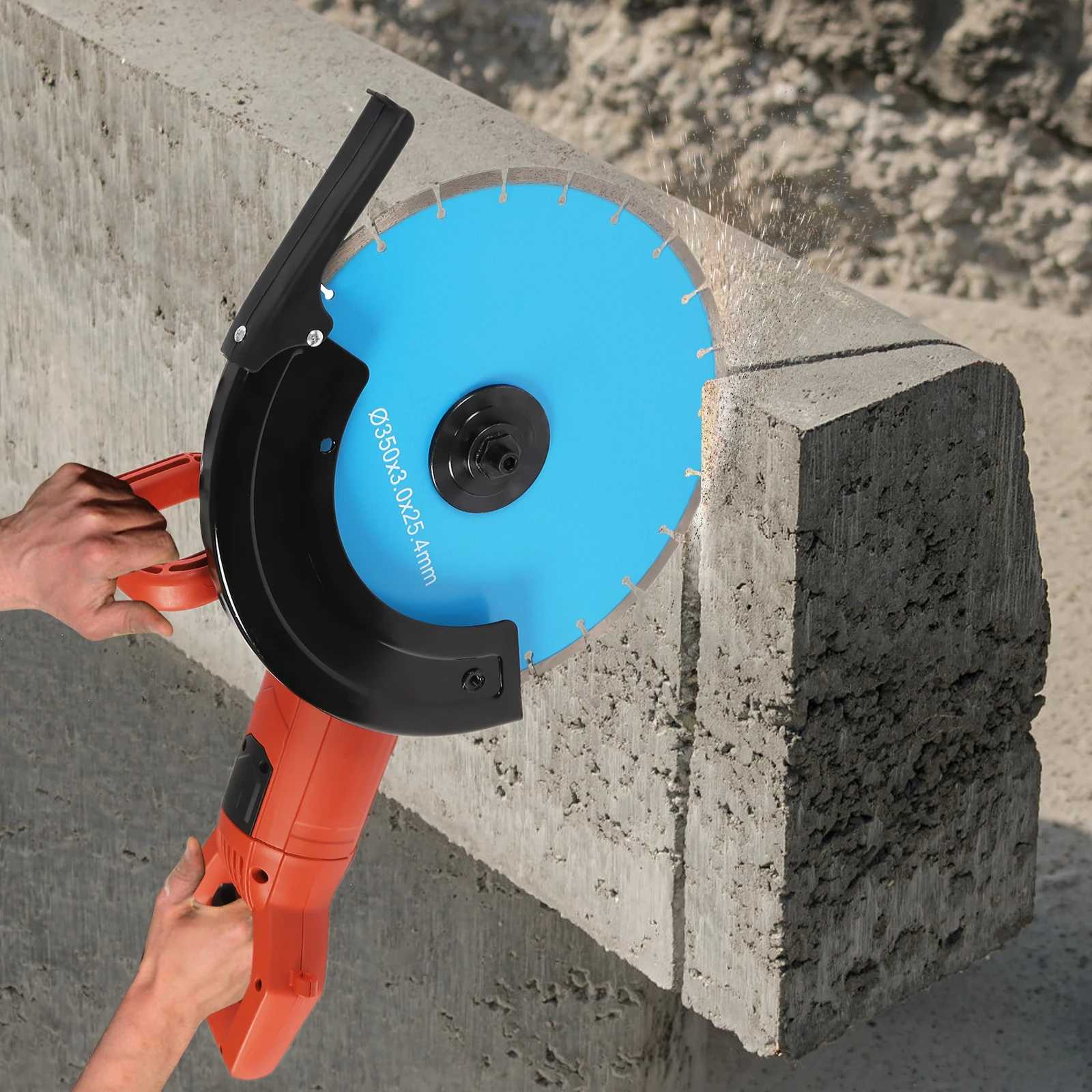

It is suitable for materials such as steel, marble, granite, cement, wood, ceramic tiles, etc., to perform tasks such as opening holes for doors and windows, grooving, cutting on roads and walls, stone processing. It is very suitable for factories, workshops, households, wood industry, and DIY work.

How to Replace the Blade

1.Press and hold the locking button.2.Turn the spacer with a spanner.3.Place the saw blade and cover the spacer.4.Press and hold the locking button and tighten the spacer.

Package Included

1* Concrete Saw1* Saw Blade 1* Protective Cover1* Secondary Handle1* Water Tube1* Suction Pump 1* English ManualAll Accessories for Assembly?

Notes

1.Please carefully read the manual and strictly follow the precautions to have a better experience. 2.When using water for dust removal, please note the machine head should be facing downwards to prevent water from flowing into the machine body. And when cleaning the machine, water should be avoided from entering the machine through the ventilation opening.3.Please?note?the?reason?for?the?saw?blade?folding?back:?The?saw?blade?folding?back?is?because?the?hand?has?cushioning?to?withstand?this?recoil.?This?steering?makes?it?easier?for?users?to?apply?greater?thrust?and?to?some?extent?accelerate?cutting?speed.4.Please regularly check the carbon brushes for wear and replace them promptly if there are large sparks. Before inspection or maintenance, please turn off the machine and unplug it.5.When the machine slows down, you can raise the machine to idle for 1 minute and then continue running to avoid overloading and burning.6.Please do not operate it in explosive environments, such as in environments with flammable liquids, gases, or dust.7.Please note that protective equipment must be worn when using this product.8.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.
